From PVC compound to the perfect edge.

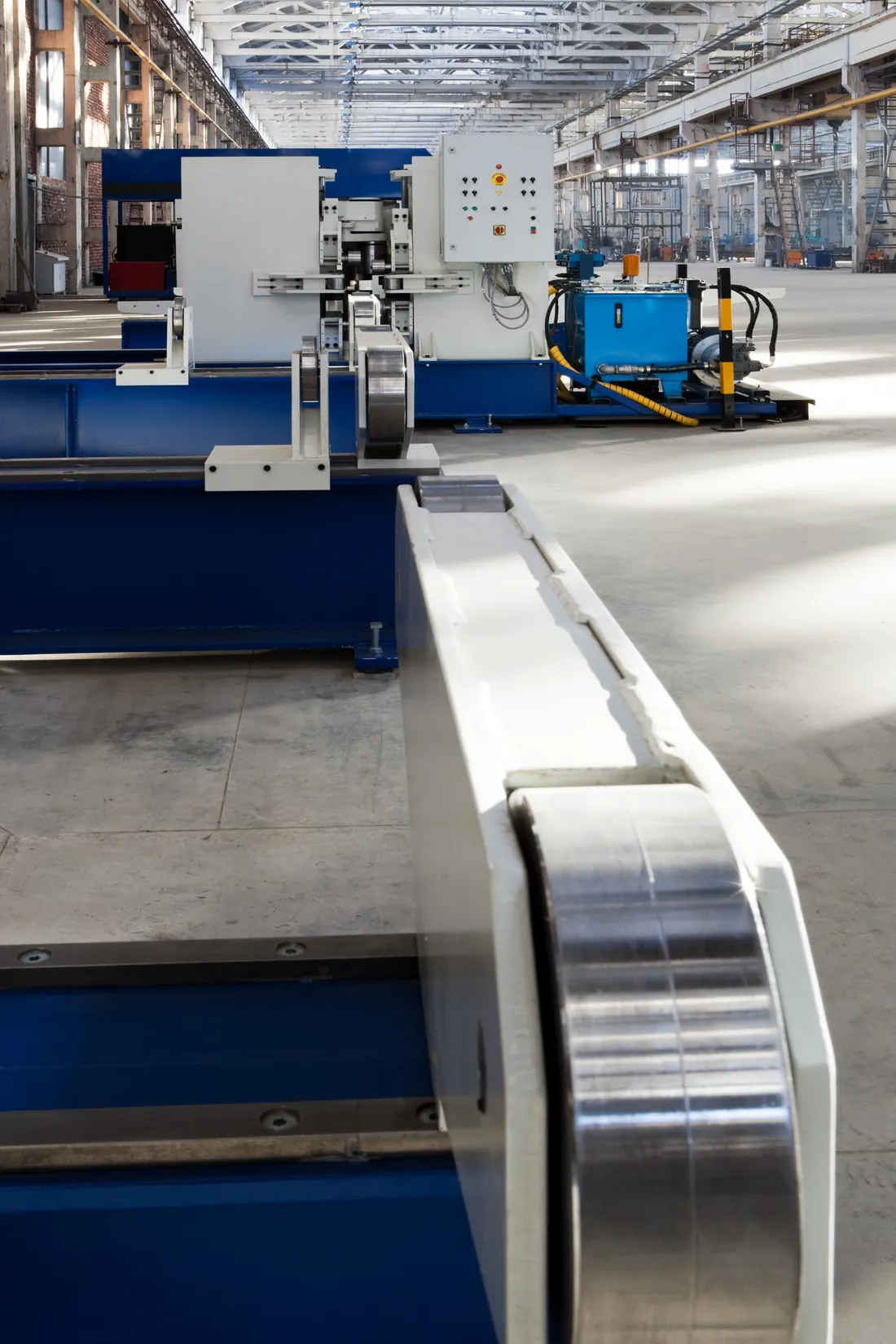

Our manufacturing facility is equipped with modern technology and efficient production processes to ensure consistent quality, precision and reliable performance.
Nine steps.
Every order.
A controlled sequence keeps colour, dimension and surface consistent across every roll.
- 01
Raw material
PVC compound selected for the run.
- 02
Compounding
Colour and formulation prepared for extrusion.
- 03
Extrusion
A continuous profile formed to the ordered width and thickness.

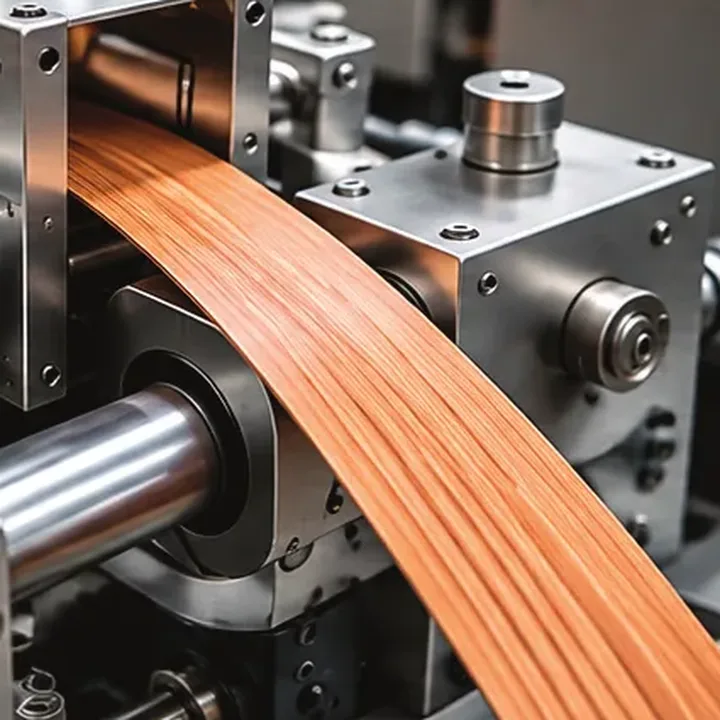

04Calibration
Width and thickness held to the setting through the line.
- 05
Surface finish
Solid colour or printed décor, then Super Matt or High Gloss.
06Inspection
Visual and dimensional checks on the running tape.
- 07
Colour check
Every batch compared with the reference for its shade code.
- 08
Winding
Rolls from 50 to 300 metres, wound for the edgebander.
09Packaging
Identified by shade code and packed for dispatch.
Built around consistency.
Advanced manufacturing technology
For superior product quality and consistent finishing.
Strict quality control
Ensures durability, flexibility and colour consistency.
Wide range of colours & designs
Various shades, textures and patterns to match all laminates.
Reliable production capabilities
To meet bulk orders and diverse customer requirements.
Customised sizes
Different widths, thicknesses and specifications as per requirement.
Pan India network
Serving furniture manufacturers, interior designers, dealers and distributors across India.
Standard sizes. Custom on request.
- Material
- PVC
- Shades
- Solid, Wooden, Fabric, Marble & Stones
- Finishes
- Super Matt & High Gloss
- Roll length
- From 50 to 300 metres
- Standard widths
- 22 · 23 · 25 · 30 · 45 · 55 mm
- Thicknesses
- 0.45 · 0.80 · 1.00 · 1.30 · 2.00 mm
- Custom sizes
- Manufactured to your requirement
- Samples
- Physical chips of any documented code
Standard sizes
- 22mm×0.45mm
- 22mm×0.80mm
- 22mm×1.00mm
- 23mm×1.30mm
- 22mm×2.00mm
- 25mm×0.80mm
- 25mm×2.00mm
- 30mm×0.80mm
- 30mm×2.00mm
- 45mm×0.80mm
- 45mm×2.00mm
- 55mm×2.00mm
Tolerances
| Width (mm) | Tolerance (mm) |
|---|---|
| 12 – 54 | ± 0.45 |
| Thickness (mm) | Tolerance (mm) |
|---|---|
| 0.4 – 0.7 | ± 0.05 |
| 0.8 – 1.5 | ± 0.10 |
| 1.6 – 2.0 | + 0.20 |
| 2.1 – 3.0 | + 0.25 |
Warranty
Apple PVC maintains strict quality standards for colours, woodgrains, patterns and finishes. Minor colour variations may occur between production batches. Warranty applies to manufacturing quality and is limited to replacement of the affected material, subject to applicable terms and conditions.
Storage
Store Apple PVC Edge Band Tape at room temperature in a dry, weather-protected area, away from direct sunlight to maintain its quality and performance.
